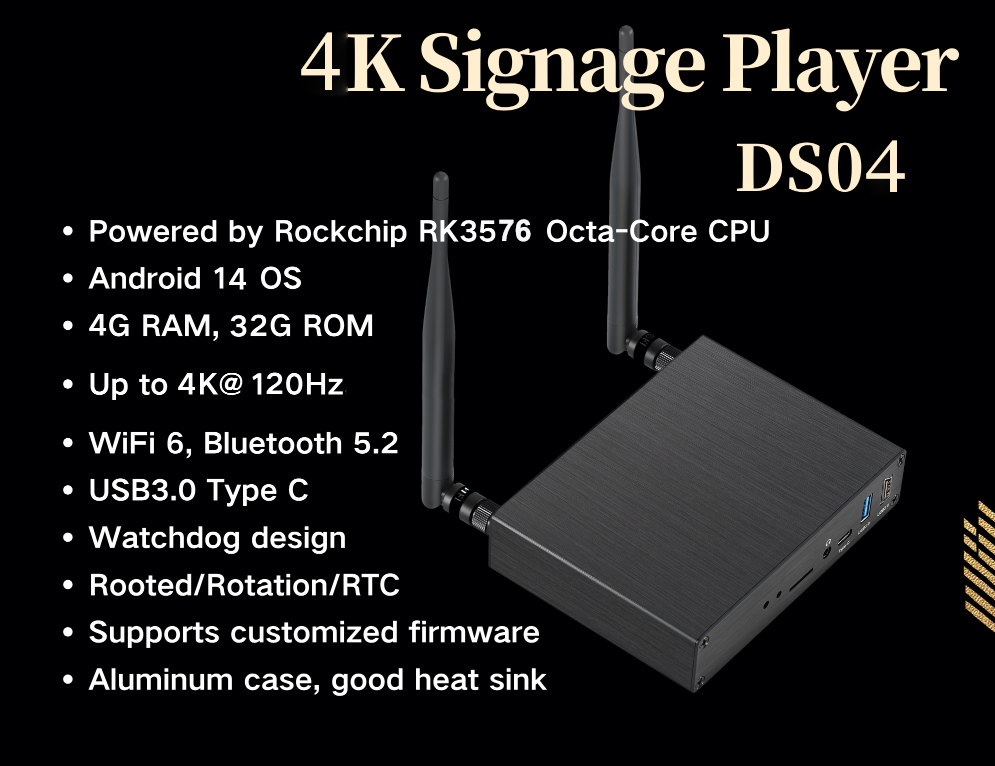

RK3576 4K MINI PC RKM DS04 signageplayer 4G+32G WIFI6 Dual 4k output Dual 4k output
|
Hardware
Specifications:
|
|
CPU
|
Rockchip RK3576, Octa-core CPU
(4× Cortex-A72 + 4× Cortex-A53)
|
|
GPU
|
ARM G52 MC3
|
|
RAM/ROM
|
4G RAM,32G ROM
|
|

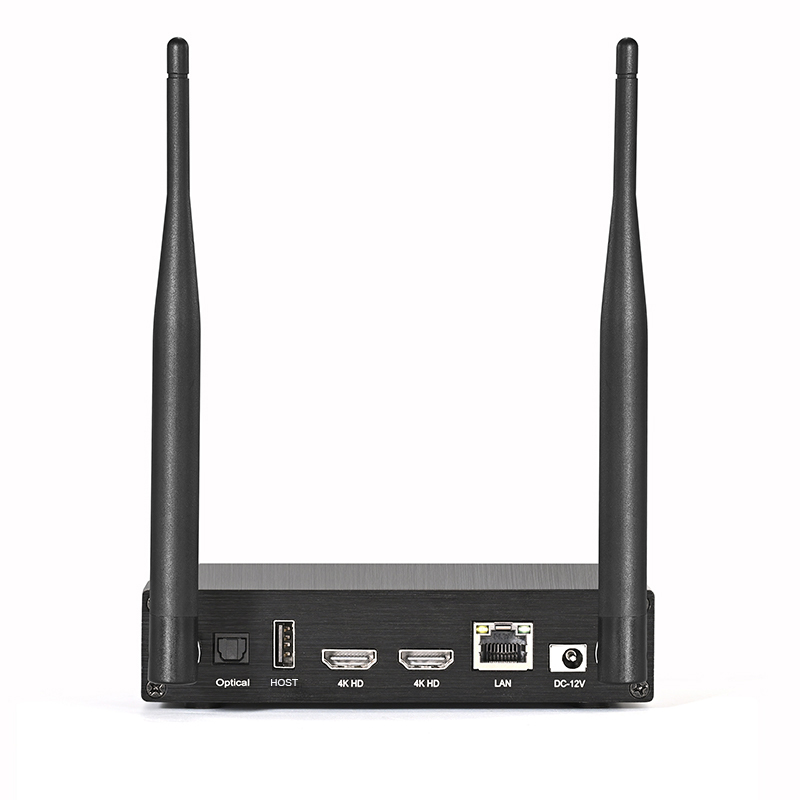

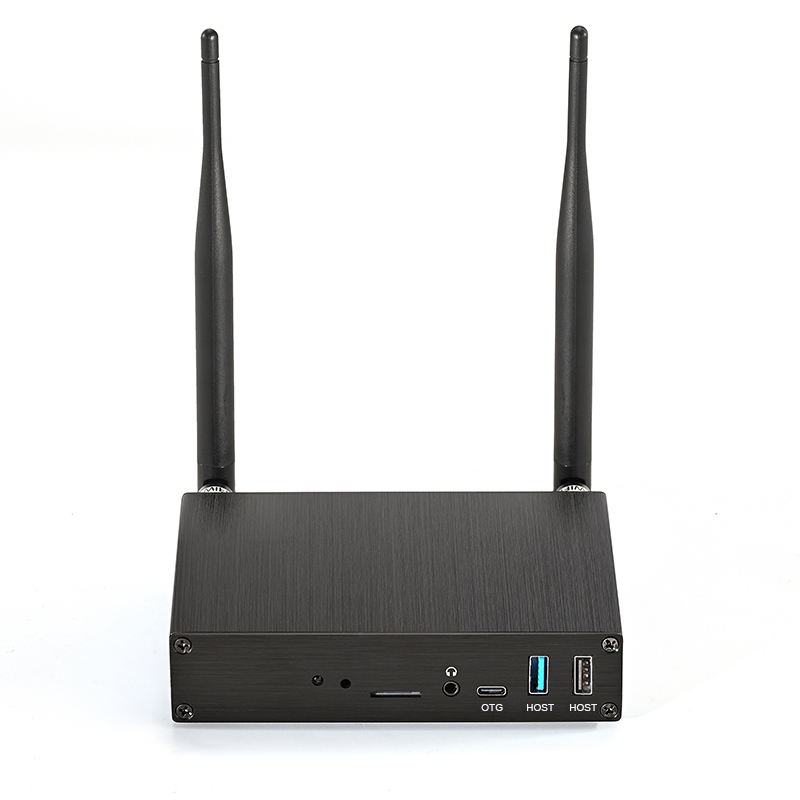

Connectors
|
HDMI out (4K) x 2
|
|
|
USB2.0 x 2, USB3.0 x 1, Type C (OTG) x 1
|
|
|
Earphone jack
|
|
|
1000M LAN
|
|
|
SIM card slot (optional)
|
|
WIFI/BT
|
Dual-band Wi-Fi 6 (2.4GHz / 5GHz, 802.11ax); Bluetooth 5.2
|
|
Video capabilities
|
Supports 8K video decoding and HDMI 2.1 output up to 4K@120Hz
|
|
OS
|
Android 14
|
|
Power
|
DC 12V/2A
|
|
Features
|
|
Time on/off
|
Supported
|
|
Watchdog
|
Supported
|
|
Touch screen
|
Compatible with most of USB touch screen
|
|
Real Time Clock (RTC)
|
Supported
|
|
Rotation
|
Supports manual screen rotation (0°, 90°, 180°, 270°)
|
|
Customzie FW
|
Supported,MOQ 500pcs
|
|
Packing:
|
|
|

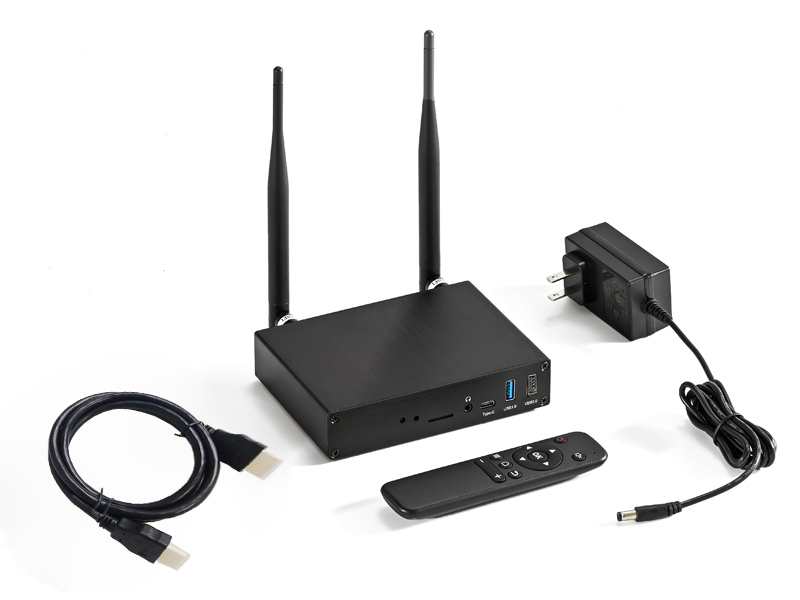

Accessories
|
12V2A Power adapter/remote
control/HDMI cable
|
|
Unit
Size
|
140*147*30mm (with antenna); 140*114*30mm(without antenna)
|
|
Working
Temperature
|
0°~70°
|
|
Working
humidity
|
0%~95%
|
